Description:

Features:

• 31 HP Kawasaki FX921v (999cc) engine and 14cc Parker HTG transmission
• 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Description:

The Cub Cadet® PRO Z 960 L EFI 60-in. 38.5 HP* Commercial Zero-Turn Lawn Mower With EFI Engine features a triple 7-gauge fabricated steel cutting deck with top, bottom and side reinforcements. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime. Air-ride seat allows the operator to adjust firmness to personal preference.

Features:

• 38.5 HP Kawasaki FX1000v (999cc) EFI engine and 16cc Hydro Gear 5400 transmission
• 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty

Specifications:

• Engine Brand: Kawasaki®
• Engine Model: FX Series EFI
• Engine Model Number: 1000V
• Engine Displacement: 999cc
• Engine Output: 38.5 HP
• Cylinders: Twin
• Engine Start: Ignition Key
• Fuel Tank Capacity: Dual 7.45 gal. US (28.2 L)
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Choke: Auto Choke / EFI
• Air Filter: High Density
• Oil Filter: Yes
• Fuel Delivery: Electronic Fuel Injection (EFI)

Drive System:

• Transmission: Hydro Gear 5400
• Forward Speed: 14 mph / 22.5 km/h
• Reverse Speed: 6 mph / 9.5 km/h

Cutting Deck:

• Deck Cutting Width: 60 in
• Deck Material: Fabricated 7ga. (.187”) steel shell
• Deck Engagement (PTO): Electronic fingertip engagement PTO
• Deck Construction: 7ga. top plate, 7ga. bottom reinforcement, ¼” rolled leading edge
• Spindle Construction: 8" sealed cast aluminum housing (maintenance-free)
• Blade(s): Triple-blade / High-lift blade (standard), Marbain Blade
• Cutting Height Range: 1” to 5” in 1/4” increments
• Anti-Scalping: 2 front deck gauge wheels
• Deck Positions: Foot pedal with spring assist, 16 Positions

Chassis & Frame:

• Frame: Fully welded, full-length 3/8 x 5" laser-cut steel / integrated tie-down slots
• Front Axle: 2" x 3" solid axle tube with ISO dampening suspension
• ROPS (Roll Over Protective Structure): 2" x 2" spring-latch tool-less foldable 3 position
• Bumper: 5/16" thick steel rear engine guard / pre-drilled mounting points for attachments with integrated rear hitch
• Yokes: 1/2" thick steel front yokes

Controls & Comfort:

• Cruise Control: NA
• Brakes: Hand-operated lever with integrated hydro pump release lever
• Steering Control: High Performance & Speed Control
• Seat Type: Cushion with seat belts
• Armrests: Padded arm rests
• Seat Suspension: High-back Air-Ride suspension with EVC cushion, ISO mounted base (lateral suspension)
• Seat Adjustment: Angle back adjust and lumbar support

Wheels:

• Rear Tires: 26" x 12" - 12"
• Front Tires: 15" x 6" - 6" Reliance Carlisle run flat
• Tire Tread: Turf Tread

Dimensions:

• Weight (approx.): 1591 lbs.

Additional Specifications:

• Hour Meter: Crew Boss
• Discharge Chute: High-density, impact-resistant rubber
• Cup Holder: Integrated into Side Pod
• Model Number: 53FLHUTV050

Warranty:

• Residential Warranty: 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
• Commercial Warranty: 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour

Description:

Features:

• 163cc Briggs & Stratton Engine: Provides high-performance power, easier starting, and extended use.
• Front-Wheel Drive: Single lever drive control for smooth navigation over uneven terrain.
• High Rear Wheels: 11-inch wheels allow for smooth mobility over tough terrain.
• Comfortable Operation: Overmold bale with single-lever drive control provides comfort while mowing.
• Adjustable Cutting Heights: Dual-lever control allows for six cutting heights.
• Easy Clean Up: Attach a garden hose to the water port to rinse away grass and debris from the underside of the deck.
• Strong Warranty: 3-year limited residential product warranty, 5-year limited consumer, and 1-year limited commercial engine warranty.

Description:

Features:

• A 173cc commercial-grade Kohler® engine is built to provide reliable power and easy starting.*
• Rear-wheel drive with dual lever control allows you to navigate uneven terrain with either hand
• 11-in. high rear wheels designed for easy mobility over tough terrain
• 21-in. steel deck with deck wash and 3-in-1 bagging, side discharge and mulching capabilities

Specification:

Engine

• Engine Brand: Kohler
• Engine Model: Command Pro
• Engine Model Number: CV173
• Engine Displacement: 173 cc
• Starter Type: Recoil
• Fuel Tank Capacity: 1.4 qt
• Engine Oil Capacity: 20 oz
• Choke: Remote

Drive System

• Drive System: RWD (Rear-Wheel Drive)

Cutting Deck

• Deck Cutting Width: 21 in
• Deck Wash: Yes
• Deck Material: Steel
• Cutting Height Range: 1.25" - 3.75"
• Deck Positions: 6
• Deck Height Adjustment: Dual-Lever
• Cutting System: Signature Cut
• Mulch Plug: Integrated
• Discharge Location: Side

Controls

• Handle: Adjustable
• Drive Controls: Dual-Lever

Wheels

• Tread Pattern: Zag
• Front Wheels: 8 in
• Rear Wheels: 11 in
• Bearing Type: Poly Bushing

Additional Specifications

• Model Number: 12AVP2KL710

Warranty

• Residential Warranty: 3-year limited
• Commercial Warranty: 1-year limited
• Engine Warranty: 5-year limited
• Commercial Engine Warranty: 1-year limited

Grass Collector

• Grass Bag Capacity: 2.3 Bushel
• Bagger Type: Dust Blocking

Professional Results for Home Lawns

The Cub Cadet SC900 23in Self-Propelled Mower is designed to deliver premium cutting performance, durability, and convenience for homeowners who want a clean, precise finish every time. Powered by a 190cc Briggs & Stratton 875 Pro engine, this mower provides dependable strength to tackle thick grass, uneven terrain, and challenging mowing conditions.

Its 23-inch Signature Cut steel deck offers 3-in-1 functionality, giving you the flexibility to bag, mulch, or side-discharge based on your lawn’s needs. The rear-wheel drive system provides enhanced traction and control on slopes, while the MySpeed™ variable drive control adjusts automatically to your walking pace, ensuring smooth operation and effortless maneuvering.

Built with Cub Cadet’s attention to detail, the SC900 features a durable steel frame, high rear wheels, and a single-lever height adjustment system for quick deck height changes. The ergonomic handle design and soft grip reduce vibration and fatigue, letting you mow longer with ease.

Key Features

• 190cc Briggs & Stratton 875 Pro Series engine provides reliable power and consistent starting.
• 23in heavy-duty steel deck designed for long-lasting durability and precise cutting.
• 3-in-1 mowing system supports bagging, mulching, and side discharge.
• Rear-wheel drive (RWD) delivers superior traction on slopes and uneven ground.
• MySpeed™ self-propelled drive automatically adjusts to your preferred walking pace.
• Single-lever deck height adjustment with six positions ranging from 1.25in to 3.75in.
• 9in front and rear wheels improve handling and stability across all terrains.
• Ergonomic soft-grip handle enhances comfort during extended mowing.
• Approximate weight: 90 lbs.

Why It’s a Smart Pick

The Cub Cadet SC900 23in Self-Propelled Walk-Behind Mower offers a perfect blend of power, comfort, and versatility for residential lawn care. With its strong Briggs & Stratton engine, rear-wheel drive traction, and precision-engineered cutting system, it’s built to make mowing faster, cleaner, and easier. Ideal for medium to large lawns, this mower provides professional-grade results and reliable performance season after season.

Powerful Performance and a Perfect Cut for Large Lawns

The Cub Cadet Ultima ZT2 60in Zero Turn Mower combines commercial-grade performance with the comfort and control that homeowners demand. Powered by a 24-horsepower Kohler 7000 Series PRO V-Twin engine, this mower delivers reliable, consistent power and smooth operation to tackle demanding mowing conditions.

The 60-inch AeroForce™ fabricated steel deck is built tough for high efficiency, offering superior airflow and a precise, even cut across large areas. With dual Hydro-Gear ZT 2800 transmissions, you’ll experience smooth control and ground speeds up to 8 mph forward and 3.5 mph reverse, allowing you to cover more ground in less time.

The ZT2 60’s reinforced 2x2-inch tubular steel frame and e-coat corrosion protection ensure long-lasting strength, while the high-back comfort seat with armrests, ergonomic lap bars, and foot-assisted deck lift provide all-day operator comfort. Whether you’re mowing rolling hills or open acreage, the ZT2 60 is built to handle it all with confidence and precision.

Key Features

• 24HP Kohler 7000 Series PRO V-Twin engine for reliable power and consistent performance.
• 60in AeroForce™ fabricated steel deck engineered for airflow and cutting efficiency.
• Dual Hydro-Gear ZT 2800 transmissions for smooth, responsive control and long-term durability.
• Forward speed up to 8 mph and reverse speed up to 3.5 mph for fast coverage.
• 2x2in tubular steel frame with corrosion-resistant e-coat protection for lasting strength.
• High-back seat with armrests and ergonomic lap bar controls for enhanced comfort.
• Foot-assisted deck lift for quick height adjustments on the go.
• LED headlights for improved visibility in low-light conditions.
• Large 20x12 rear tires and 13x6.5 front tires provide excellent traction and stability.
• Approximate weight: 720 lbs.

Why It’s a Smart Pick

The Cub Cadet Ultima ZT2 60in Zero Turn Mower delivers commercial-level performance in a residential design built to last. Its powerful Kohler PRO engine, wide 60-inch AeroForce deck, and premium hydrostatic drive system make it ideal for large lawns and estate properties up to 5 acres. From its reinforced frame to its operator-focused comfort, this mower combines durability, efficiency, and superior cut quality — making it the ultimate choice for serious homeowners who want professional results.

Description:

The Cub Cadet® Enduro Series XT1 LT50 is a riding lawn mower with a 50-inch AeroForce™ fabricated deck and a strong 24 HP engine. This mower is built to give you a great cut with minimal clumps and uneven patches. It has a hydrostatic transmission for smooth operation. Plus, it features a comfortable 15-inch high back seat that can be adjusted, making your mowing experience enjoyable.

Features:

• A 24 HP*/747cc twin-cylinder Kohler® engine is designed to deliver reliable power to tackle your yard.
• 50-in. strong AeroForce™ fabricated deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness.
• Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
• Adjustable cut and sew high back 15-in. seat with a 10-degree incline and slide slope designed to provide comfort for an excellent mowing experience.
• Compact AGM battery is designed to deliver a premium experience with a long lifespan, low maintenance and excellent starting performance for reliable starting season to season.

Specification:

Engine

• Engine Brand: Kohler®
• Engine Model: 7000 Series
• Engine Model Number: KT735
• Engine Displacement: 725 cc
• Engine Output: 24 HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.0 gal. US (11.36 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor
• Battery:
• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Tuff Torq® K46
• Forward Speed: 5.5 MPH / 8.6 km/h
• Reverse Speed: 3 MPH / 4.8 km/h
• Rear Axle: 3/4"
• Drive System: Hydrostatic
• Transmission Control: Foot Pedal
• Transmission Housing: Aluminum
• Rear Differential Lock: No

Cutting Deck

• Deck Cutting Width: 50 in
• Deck Wash: Yes
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Manual
• Cutting Height Range: 1" - 4"
• Anti-Scalping: Four gauge wheels plus roller
• Deck Positions: 12

Chassis

• Frame: Robotically welded
• Turning Radius: 16"
• Bumper: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: Cast iron

Controls

• Cruise Control: Yes
• Brakes: Disc

Comfort

• Seat Type: 15" high-back
• Armrests: No
• Seat Adjustment: Lever
• Floor Mats: Rubber

Wheels

• Bearing Type: Poly Bushing
• Rear Tires: 20"x 8"-8"
• Front Tires: 15"x 6"-6"
• Tire Tread: Turf Saver

Specifications

• Series: XT1® Enduro Series™

Additional Specifications

• Hour Meter: Available Separately
• Mulch Kit: Available Separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Model Number: 13AQA1TLA10

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: 5-year unlimited hours
• Front Axle Warranty: 5-year unlimited hours
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: No

Description:

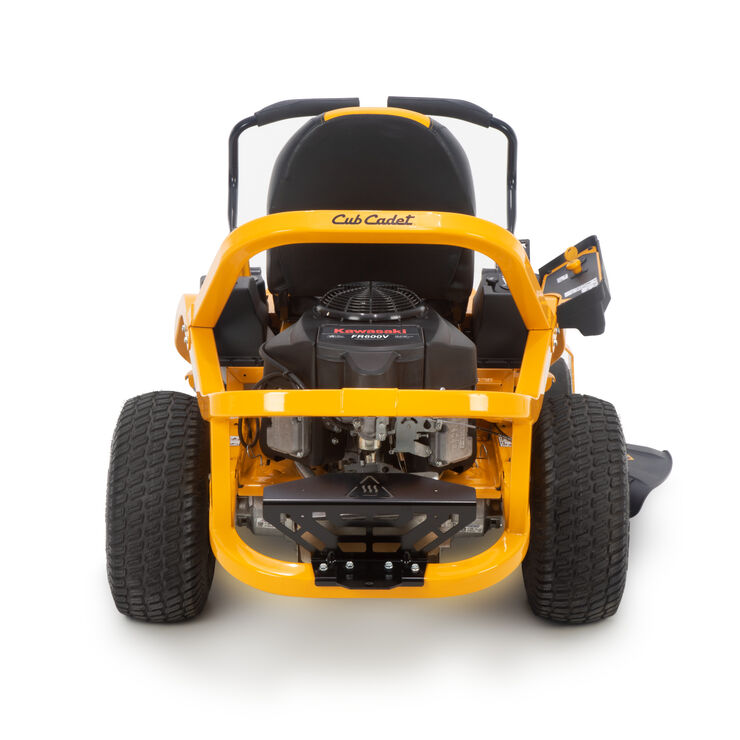

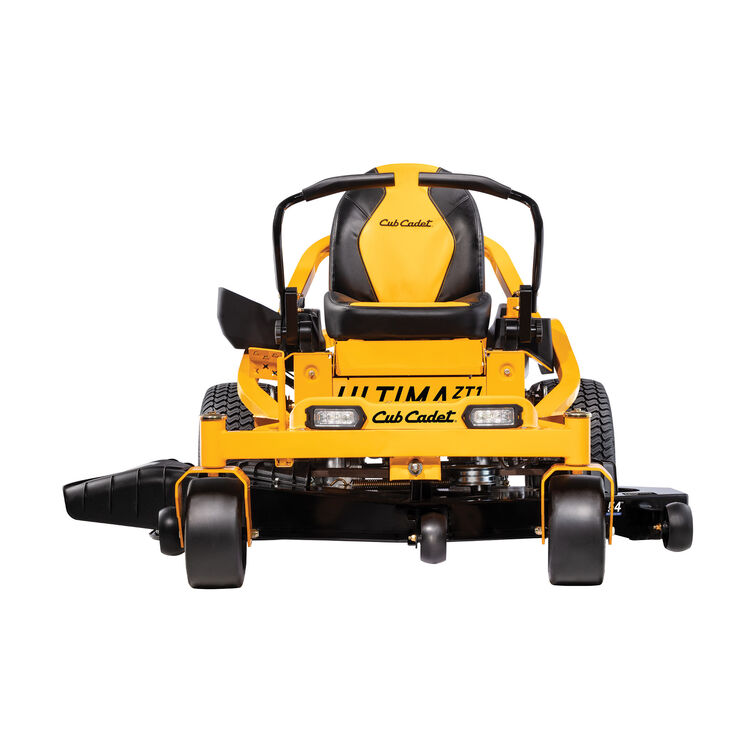

The Cub Cadet® Ultima Series ZT1 42 is a 42-inch zero-turn lawn mower with a 21.5 HP engine and an AeroForce™ fabricated deck. It is designed to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its strong tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

Features:

• A 21.5 HP*/726cc Kawasaki FR651V twin-cylinder OHV engine delivers high-performance power to tackle your yard
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear
• Read More42-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Specifications:

Engine

• Brand: Kawasaki®
• Series: FR Series
• Model Number: 651V
• Displacement: 726cc
• Output: 21.5 HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Start Method: Ignition Key
• Oil Capacity: 1.8 qt. US (1.7 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Hydro-Gear EZT 2200
• Drive Type: Hydrostatic
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Deck Width: 42 in
• Material: 11-gauge steel
• Engagement (PTO): Electric
• Construction: Fabricated
• Blades: Two
• Lift: Foot pedal with Dial Adjust
• Height Range: 1" – 4.5"
• Anti-Scalping: Two gauge wheels
• Positions: 15

Chassis

• Frame: 2" x 2" tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat Type: 20" high back
• Armrests: No
• Seat Adjustment: Knob
• Front Caster Suspension: No

Wheels

• Rear Tires: 20" x 8" - 8"
• Front Tires: 11" x 6" - 5"
• Tread: Turf Master / Multi Trac

Additional Features

• Series: Ultima Series™ ZT
• Hour Meter: Available separately
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 17YIEACE010

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: Not applicable

Description:

• A premium 23 HP/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 50-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness

Description:

The Cub Cadet® Ultima Series ZT1 54 is a 54-inch zero-turn lawn mower with a 24 HP engine and an AeroForce™ fabricated deck. It is designed to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its strong tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

Features:

• A 24HP*/747cc Kohler 7000 Series V-Twin OHV Engine, OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Specifications:

Engine

• Engine Brand: Kohler®
• Engine Model: 7000 Series KT724
• Engine Displacement: 747cc
• Engine Output: 24 HP
• Cylinders: Twin
• Starter Type: Electric
• Engine Start: Ignition Key
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery Capacity: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear EZT 2200
• Drive Type: Hydrostatic
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Deck Cutting Width: 54 in.
• Deck Material: 11-gauge steel
• Deck Construction: Fabricated
• Deck Engagement (PTO): Electric
• Number of Blades: 3
• Deck Lift System: Foot pedal with Dial Adjust
• Cutting Height Range: 1" – 4.5"
• Deck Height Positions: 15
• Anti-Scalping Wheels: 3 gauge wheels
• Deck Wash Port: No

Chassis

• Frame: 2" x 2" tubular steel
• Turning Radius: 0° (Zero-turn)
• ROPS (Roll Over Protection): No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Steering: Lap Bars
• Cruise Control: No
• Brakes: Disc

Comfort

• Seat Type: 20" high-back
• Armrests: No
• Seat Adjustment: Knob
• Front Caster Suspension: No

Wheels

• Rear Tires: 20" x 10" – 8"
• Front Tires: 11" x 6" – 5"
• Tread Type: Turf Master / Multi Trac

Additional Features

• Series: Ultima Series™ ZT
• Hour Meter: Available separately
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Integrated with Lap Bar
• Model Number: 17AREACM010

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: Not included

Description:

The Cub Cadet® Ultima Series ZT1 54 54-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.

Features:

• A 24HP*/725cc Kohler 7000 Series V-Twin OHV Engine, OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
• Zero-Turn Mower

Specifications:

Engine

• Engine Brand: Kohler®
• Engine Model: 7000 Series
• Engine Model Number: KT735
• Engine Displacement: 725cc
• Engine Output: 24HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck

• Deck Cutting Width: 54 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): 3
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: 3 gauge wheels
• Deck Positions: 15

Chassis

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat Type: 20" high back
• Armrests: No
• Seat Adjustment: Knob
• Front Caster Suspension: No

Wheels

• Rear Tires: 20''x 10''- 8''
• Front Tires: 11"x 6"-5"
• Tire Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZT

Description:

Features:

• A premium 23 HP/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Equipped with additional high-performance features like front caster suspension, steel fenders and larger rear wheels help you power through challenging terrain with greater comfort.
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
• Zero-Turn Mower

Specification:

Engine

• Engine Brand: Kawasaki®
• Engine Model: FR Series
• Engine Model Number: 691V
• Engine Displacement: 726 cc
• Engine Output: 23 HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt. US (2 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor
• Battery:
• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck

• Deck Cutting Width: 54 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: Three gauge wheels
• Deck Positions: 15

Chassis

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat Type: 20" high back
• Armrests: No
• Seat Adjustment: Knob
• Front Caster Suspension: Yes

Wheels

• Rear Tires: 20'' x 12'' - 8''
• Front Tires: 11" x 6" - 5"
• Tire Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZT

Additional Specifications

• Hour Meter: Available Separately
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 17AIEACMA10

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: No

Description:

The Cub Cadet® Ultima Series ZT2 54 54-in. 23 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.

• A premium 23 HP*/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Dual hydrostatic transmissions allow for quick and effortless 7.5 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 54-in. AeroForce fabricated deck with heavy-duty reinforced leading edges and cutting system that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
• Zero-Turn Mower

Specification:

Engine Specifications:

• Engine Brand: Kawasaki®
• Engine Model: FR Series
• Engine Model Number: 691V
• Engine Displacement: 726cc
• Engine Output: 23 HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gallons US (13.25 liters)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 US quarts (2 liters)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor
• Battery: 210 CCA, AGM (Absorbent Glass Mat), 12V

Drive System:

• Transmission: Tuff Torq TZ 350
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck:

• Deck Cutting Width: 54 inches
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Construction: Fabricated
• Blade(s): 3
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1 inch - 4.5 inches
• Anti-Scalping: 3 gauge wheels
• Deck Positions: 15

Chassis:

• Frame: 2 inches x 2 inches tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls:

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort:

• Seat Type: 20 inches high back with Armrests
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels:

• Rear Tires: 20 inches x 12 inches - 8 inches
• Front Tires: 13 inches x 6.5 inches - 6 inches
• Tire Tread: Turf Master / Multi Trac

Specifications:

• Series: Ultima Series™ ZT
• Additional Specifications:
• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 17AIEAC3A10

Warranty:

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: No

Description:

The Cub Cadet® Ultima Series ZTS1 42 is a 42-inch zero-turn lawn mower with a 22 HP engine, featuring an AeroForce™ fabricated deck and Synchro-Steer™ technology. It is designed to provide a high-quality cut with few clumps and an even finish. The Synchro-Steer™ technology offers 4-wheel control, which helps provide stability for straight-line mowing on hills and slopes up to 20 degrees. The mower has dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look.

Features:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 22 HP*/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• Zero-Turn Mower

Specification:

Engine

• Brand: Kohler®
• Series: 7000 Series
• Model Number: KT722
• Displacement: 747cc
• Power Output: 22 HP
• Cylinders: Twin
• Start Type: Electric (Ignition Key)
• Fuel Type: Gasoline
• Fuel Delivery: Carburetor
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual Element
• Oil Filter: Yes
• Lubrication: Fully Pressurized
• Oil Capacity: 2.0 qt (1.89 L)
• Charging System: 12 Amp Regulated
• Fuel Tank Capacity: 3.5 gal. (13.25 L)
• Fuel Gauge: No

Battery

• Voltage: 12V
• Type: AGM (Absorbent Glass Mat)
• CCA: 210

Drive System

• Transmission: Hydro-Gear EZT 2200
• Type: Hydrostatic
• Forward Speed: Up to 7 MPH (11.3 km/h)
• Reverse Speed: Up to 3.5 MPH (5.6 km/h)

Tires

• Front Tires: 13" x 6.5" - 6"
• Rear Tires: 20" x 8" - 8"
• Tread: Turf Master / Multi Trac

Cutting Deck

• Cutting Width: 42 in
• Deck Construction: Fabricated
• Material: 11-gauge steel
• Blades: 2
• Engagement: Electric PTO
• Cutting Height Range: 1" – 4.5"
• Deck Lift: Foot Pedal with Dial Adjust
• Anti-Scalping Wheels: 2
• Deck Wash Port: No
• Height Positions: 15

Chassis

• Frame: 2" x 2" Tubular Steel
• Turning Radius: 0° (True Zero-Turn)
• Corrosion Protection: Yes
• ROPS: No
• Rear Tow Hitch: Yes

Comfort & Controls

• Steering: Steering Wheel
• Seat Type: 20" High-Back
• Armrests: No
• Seat Adjustment: Lever
• Caster Suspension: None
• Brakes: Disc
• Cruise Control: No
• Cup Holder: Yes
• Parking Brake: Hand Lever
• Model Number
• 17ARGBYEA10

Additional Features

• Headlights: Dual-LED
• Hour Meter: Available Separately
• Mulch Kit: Available Separately
• Operator Presence System: Yes

Warranty

• Residential Warranty: 3-Year Unlimited Hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: Not Applicable

Description:

The Cub Cadet® Ultima Series ZTS1 46 46-in. 22 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Synchro-Steer offers 4-wheel control designed to help provide stability for straight line mowing on hillsides and slopes up to 20-degrees. Dual hydrostatic transmissions engineered for quick ground speeds that leave your yard with a professional-quality finish.

Features:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 22 HP*/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• 46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
• Zero-Turn Mower

Specification:

Engine

• Engine Brand: Kohler®
• Engine Model: 7000 Series
• Engine Model Number: KT725
• Engine Displacement: 725 cc
• Engine Output: 22 HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor
• Battery:
• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck

• Deck Cutting Width: 46 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Two
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: Two gauge wheels
• Deck Positions: 15

Chassis

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel

Comfort

• Seat Type: 20" high back
• Armrests: No
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels

• Rear Tires: 20” x 8” - 8"
• Front Tires: 13" x 6.5" - 6"
• Tire Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTS

Additional Specifications

• Hour Meter: Available Separately
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand Lever
• Model Number: 17ARGBYNA10

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: No

Description:

Features:

• Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Equipped with a powerful 25 HP Kohler® Confidant V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
• Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
• Read MoreIndependent suspension caster wheels that deliver a smooth ride with less vibration.
• High comfort, high performance an automotive-inspired, ergonomic, fully adjustable premium 24 in. high back adjustable seat with cushioned armrests, ball-bearing seat slide and patented suspension system, adjustable lap bars and industry-exclusive ergonomic hand grips optimized for comfort providing you the confidence to maximize your speed and reduce operator fatigue

Specification:

Engine

• Engine Brand: Kohler®
• Engine Model: Confidant
• Engine Model Number: ZT740
• Engine Displacement: 747 cc
• Engine Output: 25 HP
• Starter Type: Electric
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US (2 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Choke-a-matic
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor
• Battery:
• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3200
• Forward Speed: 8.5 MPH / 13.7 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck

• Deck Cutting Width: 54 in
• Deck Wash: No
• Deck Material: 10-gauge steel with 2-gauge reinforcement
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1" - 4.75"
• Anti-Scalping: Three gauge wheels
• Deck Positions: 17

Chassis

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0°
• ROPS: Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat Type: 24" high back
• Armrests: Yes
• Seat Adjustment: Lever

Wheels

• Rear Tires: 23"x 12"-12"
• Front Tires: 13"x 6.5"-6"
• Tire Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTX

Additional Specifications

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 47RTAAA7010

Warranty

• Residential Warranty: 4-year / 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: 4-year / 800 hours
