Description:

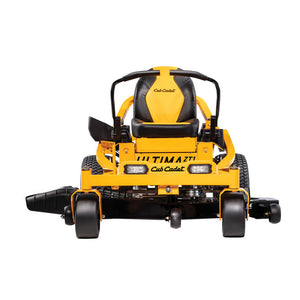

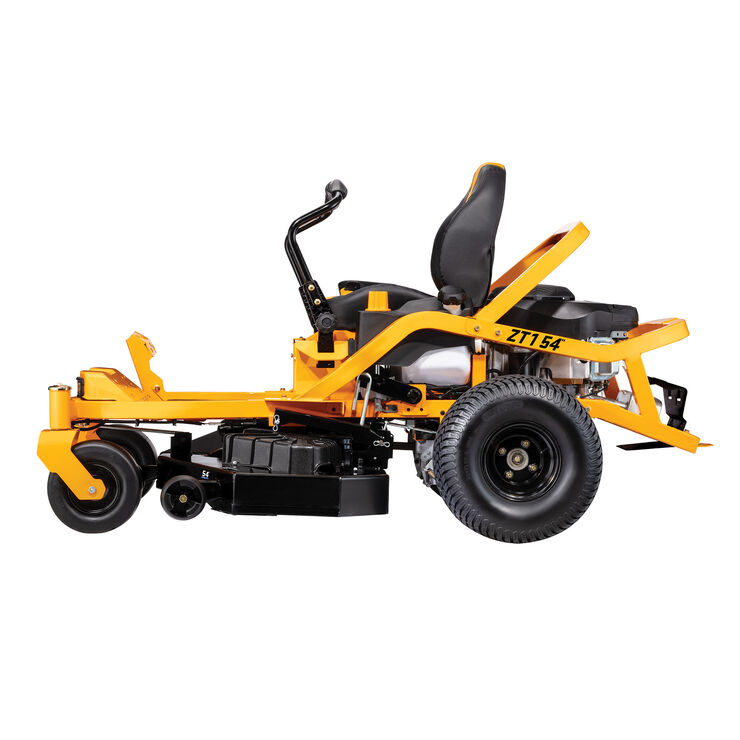

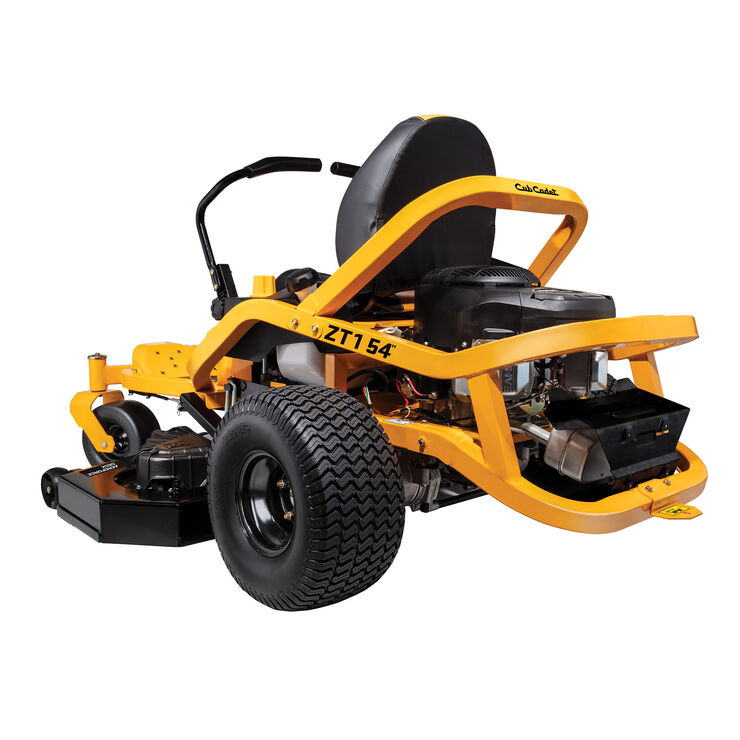

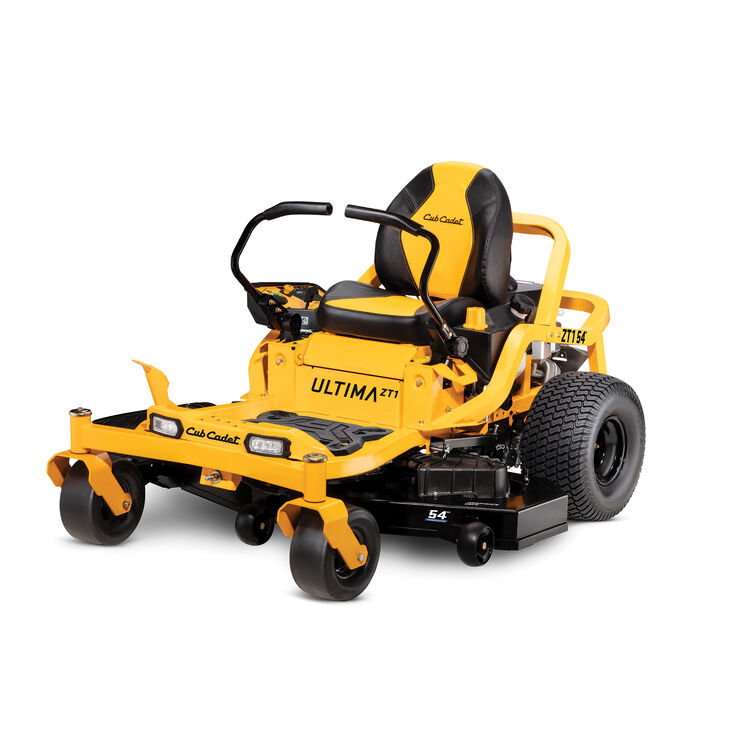

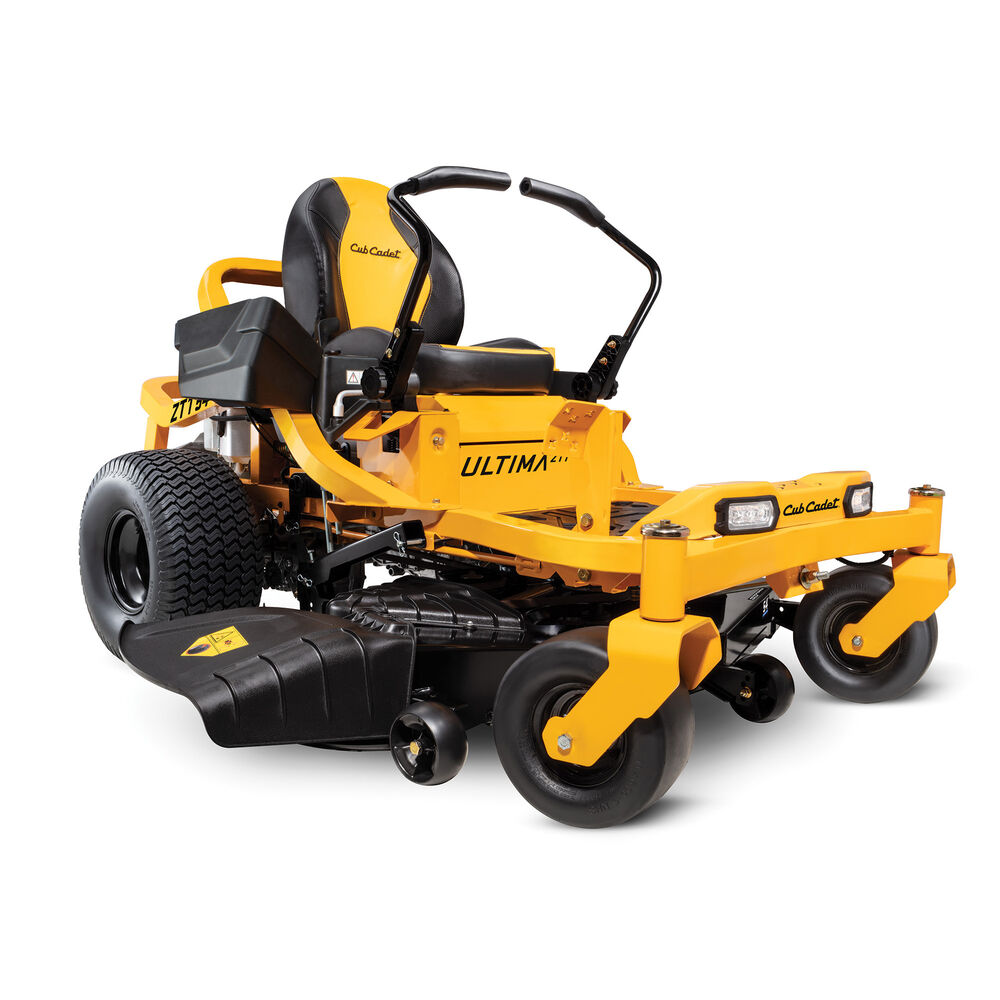

The Cub Cadet® Ultima Series ZT1 54 is a 54-inch zero-turn lawn mower with a 24 HP engine and an AeroForce™ fabricated deck. It is designed to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its strong tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

Features:

• A 24HP*/747cc Kohler 7000 Series V-Twin OHV Engine, OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Specifications:

Engine

• Engine Brand: Kohler®
• Engine Model: 7000 Series KT724
• Engine Displacement: 747cc
• Engine Output: 24 HP
• Cylinders: Twin
• Starter Type: Electric
• Engine Start: Ignition Key
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery Capacity: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear EZT 2200
• Drive Type: Hydrostatic
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Deck Cutting Width: 54 in.
• Deck Material: 11-gauge steel
• Deck Construction: Fabricated
• Deck Engagement (PTO): Electric
• Number of Blades: 3
• Deck Lift System: Foot pedal with Dial Adjust
• Cutting Height Range: 1" – 4.5"
• Deck Height Positions: 15
• Anti-Scalping Wheels: 3 gauge wheels
• Deck Wash Port: No

Chassis

• Frame: 2" x 2" tubular steel
• Turning Radius: 0° (Zero-turn)
• ROPS (Roll Over Protection): No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Steering: Lap Bars
• Cruise Control: No
• Brakes: Disc

Comfort

• Seat Type: 20" high-back
• Armrests: No
• Seat Adjustment: Knob
• Front Caster Suspension: No

Wheels

• Rear Tires: 20" x 10" – 8"
• Front Tires: 11" x 6" – 5"
• Tread Type: Turf Master / Multi Trac

Additional Features

• Series: Ultima Series™ ZT
• Hour Meter: Available separately
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Integrated with Lap Bar
• Model Number: 17AREACM010

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: Not included
